環境
- Kubernetes 1.31.0
- Control-Plane：1台
- Woker-Node：3台+1台
- cri-o v1.30.4
- CNI(Container Networking Interface)
- Calico v3.28.0
- Cilium v1.16.1
- Rook-Ceph 1.15
参考URL
CNIにCalicoを使用していると動作しない
インストール
インストール手順は公式ドキュメントを参考にする
マニフェストファイルをダウンロードする
1
2
3
4
|
wget https://raw.githubusercontent.com/rook/rook/release-1.15/deploy/examples/crds.yaml
wget https://raw.githubusercontent.com/rook/rook/release-1.15/deploy/examples/common.yaml
wget https://raw.githubusercontent.com/rook/rook/release-1.15/deploy/examples/operator.yaml
wget https://raw.githubusercontent.com/rook/rook/release-1.15/deploy/examples/cluster.yaml
|
CNIがCaliicoの場合（上手く行かない）
- いくつかのPodが"Pending"になってしまう
Rookをデプロイする
下記コマンドを実行して"Rook"をデプロイする
1
|
kubectl create -f crds.yaml -f common.yaml -f operator.yaml
|
デプロイされたか確認する
1
|
kubectl -n rook-ceph get pod
|
1
2
3
4
|
mao@cilium-control-plane-01:~$ kubectl -n rook-ceph get pod
NAME READY STATUS RESTARTS AGE
rook-ceph-operator-b777cf696-d2v8d 1/1 Running 0 2m19s
mao@cilium-control-plane-01:~$
|
1
|
kubectl get all -n rook-ceph
|
1
2
3
4
5
6
7
8
9
10
|
mao@cilium-control-plane-01:~$ kubectl get all -n rook-ceph
NAME READY STATUS RESTARTS AGE
pod/rook-ceph-operator-b777cf696-d2v8d 1/1 Running 0 3m6s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/rook-ceph-operator 1/1 1 1 3m6s
NAME DESIRED CURRENT READY AGE
replicaset.apps/rook-ceph-operator-b777cf696 1 1 1 3m6s
mao@cilium-control-plane-01:~$
|
Cephをデプロイする
1
2
|
kubectl create -f cluster.yaml
kubectl apply -f cluster.yaml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
mao@cri-o-control-plane-01:~$ kubectl -n rook-ceph get pod
NAME READY STATUS RESTARTS AGE
csi-cephfsplugin-frgl7 3/3 Running 0 33s
csi-cephfsplugin-provisioner-76cc6d46cd-88s2t 0/6 ContainerCreating 0 33s
csi-cephfsplugin-provisioner-76cc6d46cd-8p4wr 0/6 ContainerCreating 0 33s
csi-cephfsplugin-rbjwz 3/3 Running 0 33s
csi-cephfsplugin-rrc96 0/3 ContainerCreating 0 33s
csi-rbdplugin-2l57x 3/3 Running 0 34s
csi-rbdplugin-9mjr7 0/3 ContainerCreating 0 34s
csi-rbdplugin-b64g2 3/3 Running 0 34s
csi-rbdplugin-provisioner-cd76f59d6-m2dtd 0/6 ContainerCreating 0 33s
csi-rbdplugin-provisioner-cd76f59d6-zrnlw 0/6 ContainerCreating 0 33s
rook-ceph-csi-detect-version-2wfxz 0/1 PodInitializing 0 23s
rook-ceph-mon-a-canary-644484764b-rlb5d 2/2 Running 0 36s
rook-ceph-mon-b-canary-5cbb87459c-4jsrl 2/2 Running 0 36s
rook-ceph-mon-c-canary-5c54488996-lcmsh 0/2 Pending 0 36s
rook-ceph-operator-9b9dd876c-5xkpb 1/1 Running 0 3m29s
mao@cri-o-control-plane-01:~$
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
mao@cri-o-control-plane-01:~$ kubectl -n rook-ceph get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
csi-cephfsplugin-frgl7 3/3 Running 0 3m28s 192.168.10.56 mao-cri-o-worker-node <none> <none>
csi-cephfsplugin-provisioner-76cc6d46cd-88s2t 6/6 Running 0 3m28s 10.128.89.151 mao-cri-o-worker-node <none> <none>
csi-cephfsplugin-provisioner-76cc6d46cd-8p4wr 6/6 Running 1 (2m44s ago) 3m28s 10.128.42.210 k8s-crio-woker-node <none> <none>
csi-cephfsplugin-rbjwz 3/3 Running 0 3m28s 192.168.10.58 cri-o-woker-node-02 <none> <none>
csi-cephfsplugin-rrc96 3/3 Running 2 (110s ago) 3m28s 192.168.10.57 k8s-crio-woker-node <none> <none>
csi-rbdplugin-2l57x 3/3 Running 0 3m29s 192.168.10.56 mao-cri-o-worker-node <none> <none>
csi-rbdplugin-9mjr7 3/3 Running 2 (2m16s ago) 3m29s 192.168.10.57 k8s-crio-woker-node <none> <none>
csi-rbdplugin-b64g2 3/3 Running 0 3m29s 192.168.10.58 cri-o-woker-node-02 <none> <none>
csi-rbdplugin-provisioner-cd76f59d6-m2dtd 6/6 Running 0 3m28s 10.128.89.150 mao-cri-o-worker-node <none> <none>
csi-rbdplugin-provisioner-cd76f59d6-zrnlw 6/6 Running 1 (2m47s ago) 3m28s 10.128.42.209 k8s-crio-woker-node <none> <none>
rook-ceph-csi-detect-version-2wfxz 0/1 Completed 0 3m18s 10.128.42.211 k8s-crio-woker-node <none> <none>
rook-ceph-mon-a-5b99cfb698-n9df2 0/2 Pending 0 2m27s <none> <none> <none> <none>
rook-ceph-operator-9b9dd876c-5xkpb 0/1 Completed 0 6m24s 10.128.42.206 k8s-crio-woker-node <none> <none>
rook-ceph-operator-9b9dd876c-8jp86 0/1 Completed 0 2m20s 10.128.43.163 cri-o-woker-node-02 <none> <none>
rook-ceph-operator-9b9dd876c-xr24m 0/1 Pending 0 108s <none> <none> <none> <none>
mao@cri-o-control-plane-01:~$
|
削除する
1
2
|
kubectl delete -f crds.yaml -f common.yaml -f operator.yaml
kubectl delete -f cluster.yaml
|
Kubernetes の Evicted な Pod を消してディスク領域を空ける
1
|
kubectl get pod -A --no-headers --field-selector status.phase!=Running | awk '{print "kubectl delete -n "$1" pod/"$2}' | sh
|
CNIがCiliumの場合（上手く行く）
Rookをデプロイする
下記コマンドを実行して"Rook"をデプロイする
1
|
kubectl create -f crds.yaml -f common.yaml -f operator.yaml
|
デプロイされたか確認する
1
|
kubectl -n rook-ceph get pod
|
1
2
3
4
|
mao@cilium-control-plane-01:~$ kubectl -n rook-ceph get pod
NAME READY STATUS RESTARTS AGE
rook-ceph-operator-b777cf696-d2v8d 1/1 Running 0 2m19s
mao@cilium-control-plane-01:~$
|
1
|
kubectl get all -n rook-ceph
|
1
2
3
4
5
6
7
8
9
10
|
mao@cilium-control-plane-01:~$ kubectl get all -n rook-ceph
NAME READY STATUS RESTARTS AGE
pod/rook-ceph-operator-b777cf696-d2v8d 1/1 Running 0 3m6s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/rook-ceph-operator 1/1 1 1 3m6s
NAME DESIRED CURRENT READY AGE
replicaset.apps/rook-ceph-operator-b777cf696 1 1 1 3m6s
mao@cilium-control-plane-01:~$
|
Cephをデプロイする
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
|
storage: # cluster level storage configuration and selection
#useAllNodes: true
#useAllDevices: true
useAllNodes: false
useAllDevices: false
#deviceFilter:
config:
# crushRoot: "custom-root" # specify a non-default root label for the CRUSH map
# metadataDevice: "md0" # specify a non-rotational storage so ceph-volume will use it as block db device of bluestore.
# databaseSizeMB: "1024" # uncomment if the disks are smaller than 100 GB
# osdsPerDevice: "1" # this value can be overridden at the node or device level
# encryptedDevice: "true" # the default value for this option is "false"
# deviceClass: "myclass" # specify a device class for OSDs in the cluster
allowDeviceClassUpdate: false # whether to allow changing the device class of an OSD after it is created
allowOsdCrushWeightUpdate: false # whether to allow resizing the OSD crush weight after osd pvc is increased
# Individual nodes and their config can be specified as well, but 'useAllNodes' above must be set to false. Then, only the named
# nodes below will be used as storage resources. Each node's 'name' field should match their 'kubernetes.io/hostname' label.
nodes:
#- name: "192.168.10.56"
- name: "cilium-woker-node-01"
devices:
- name: "sdb"
#- name: "192.168.10.57"
- name: "cilium-woker-node-01"
devices:
- name: "sdb"
#- name: "192.168.10.58"
- name: "cilium-woker-node-01"
devices:
- name: "sdb"
# nodes:
# - name: "172.17.4.201"
# devices: # specific devices to use for storage can be specified for each node
# - name: "sdb"
# - name: "nvme01" # multiple osds can be created on high performance devices
# config:
# osdsPerDevice: "5"
# - name: "/dev/disk/by-id/ata-ST4000DM004-XXXX" # devices can be specified using full udev paths
# config: # configuration can be specified at the node level which overrides the cluster level config
# - name: "172.17.4.301"
# deviceFilter: "^sd."
# when onlyApplyOSDPlacement is false, will merge both placement.All() and placement.osd
|
デプロイする
1
2
|
kubectl create -f cluster.yaml
kubectl apply -f cluster.yaml
|
確認する
1
|
kubectl get pod -n rook-ceph -o wide
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
mao@cilium-control-plane-01:~$ kubectl get pod -n rook-ceph -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
csi-cephfsplugin-gtfc5 3/3 Running 1 (66m ago) 67m 192.168.10.58 cilium-woker-node-03 <none> <none>
csi-cephfsplugin-provisioner-76cc6d46cd-78cns 6/6 Running 1 (66m ago) 67m 10.128.3.86 cilium-woker-node-03 <none> <none>
csi-cephfsplugin-provisioner-76cc6d46cd-jd26f 6/6 Running 0 67m 10.128.2.193 cilium-woker-node-02 <none> <none>
csi-cephfsplugin-qvmmv 3/3 Running 0 67m 192.168.10.57 cilium-woker-node-02 <none> <none>
csi-cephfsplugin-vj7s5 3/3 Running 1 (66m ago) 67m 192.168.10.56 cilium-woker-node-01 <none> <none>
csi-rbdplugin-mz4v6 3/3 Running 1 (67m ago) 67m 192.168.10.56 cilium-woker-node-01 <none> <none>
csi-rbdplugin-pggtk 3/3 Running 1 (67m ago) 67m 192.168.10.58 cilium-woker-node-03 <none> <none>
csi-rbdplugin-provisioner-cd76f59d6-2tbhw 6/6 Running 1 (66m ago) 67m 10.128.3.138 cilium-woker-node-03 <none> <none>
csi-rbdplugin-provisioner-cd76f59d6-ngmxj 6/6 Running 1 (66m ago) 67m 10.128.0.35 cilium-woker-node-01 <none> <none>
csi-rbdplugin-zttwq 3/3 Running 0 67m 192.168.10.57 cilium-woker-node-02 <none> <none>
rook-ceph-crashcollector-cilium-woker-node-01-8456599cf6-tgc64 1/1 Running 0 67m 10.128.0.132 cilium-woker-node-01 <none> <none>
rook-ceph-crashcollector-cilium-woker-node-02-97bd68f69-rg25b 1/1 Running 0 67m 10.128.2.12 cilium-woker-node-02 <none> <none>
rook-ceph-crashcollector-cilium-woker-node-03-6644b8c6d8-72j7c 1/1 Running 0 67m 10.128.3.134 cilium-woker-node-03 <none> <none>
rook-ceph-exporter-cilium-woker-node-01-5f4cf5f7f6-b74j2 1/1 Running 0 67m 10.128.0.133 cilium-woker-node-01 <none> <none>
rook-ceph-exporter-cilium-woker-node-02-55674c8b97-t9rj5 1/1 Running 0 67m 10.128.2.218 cilium-woker-node-02 <none> <none>
rook-ceph-exporter-cilium-woker-node-03-6cf4549856-mt9mb 1/1 Running 0 67m 10.128.3.210 cilium-woker-node-03 <none> <none>
rook-ceph-mgr-a-5cc85f554-vhz4f 3/3 Running 0 67m 10.128.0.188 cilium-woker-node-01 <none> <none>
rook-ceph-mgr-b-6598b8cc89-7zh6m 3/3 Running 0 67m 10.128.2.130 cilium-woker-node-02 <none> <none>
rook-ceph-mon-a-86bdc645fd-mmkk4 2/2 Running 0 70m 10.128.2.185 cilium-woker-node-02 <none> <none>
rook-ceph-mon-b-669799cb8d-f9ktn 2/2 Running 0 69m 10.128.3.42 cilium-woker-node-03 <none> <none>
rook-ceph-mon-c-7d68b88dc9-k7jlv 2/2 Running 0 67m 10.128.0.131 cilium-woker-node-01 <none> <none>
rook-ceph-operator-b777cf696-d2v8d 1/1 Running 0 78m 10.128.2.155 cilium-woker-node-02 <none> <none>
mao@cilium-control-plane-01:~$
|
- 全て"Running"になっているので問題なくデプロイできている
Web UI (Dashboard) LoadBalancer
LoadBalancerデプロイ
参考URL
マニフェストファイルをダウンロードする
1
|
wget https://raw.githubusercontent.com/rook/rook/release-1.15/deploy/examples/dashboard-loadbalancer.yaml
|
デプロイする
1
|
kubectl create -f dashboard-loadbalancer.yaml
|
デプロイされたダッシュボードのIPアドレスを確認する
1
|
kubectl -n rook-ceph get service
|
1
2
3
4
5
6
7
8
9
10
|
mao@cilium-control-plane-01:~$ kubectl -n rook-ceph get service
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
rook-ceph-exporter ClusterIP 10.108.226.114 <none> 9926/TCP 93m
rook-ceph-mgr ClusterIP 10.98.27.89 <none> 9283/TCP 93m
rook-ceph-mgr-dashboard ClusterIP 10.102.164.58 <none> 8443/TCP 93m
rook-ceph-mgr-dashboard-loadbalancer LoadBalancer 10.98.225.42 192.168.10.59 8443:32740/TCP 2m8s
rook-ceph-mon-a ClusterIP 10.105.48.50 <none> 6789/TCP,3300/TCP 97m
rook-ceph-mon-b ClusterIP 10.97.27.164 <none> 6789/TCP,3300/TCP 96m
rook-ceph-mon-c ClusterIP 10.102.18.161 <none> 6789/TCP,3300/TCP 94m
mao@cilium-control-plane-01:~$
|
下記のIPアドレスにアクセスする
1
|
https://192.168.10.59:8443/
|
ダッシュボードのログイン情報の確認方法
1
|
kubectl -n rook-ceph get secret rook-ceph-dashboard-password -o jsonpath="{['data']['password']}" | base64 --decode && echo
|

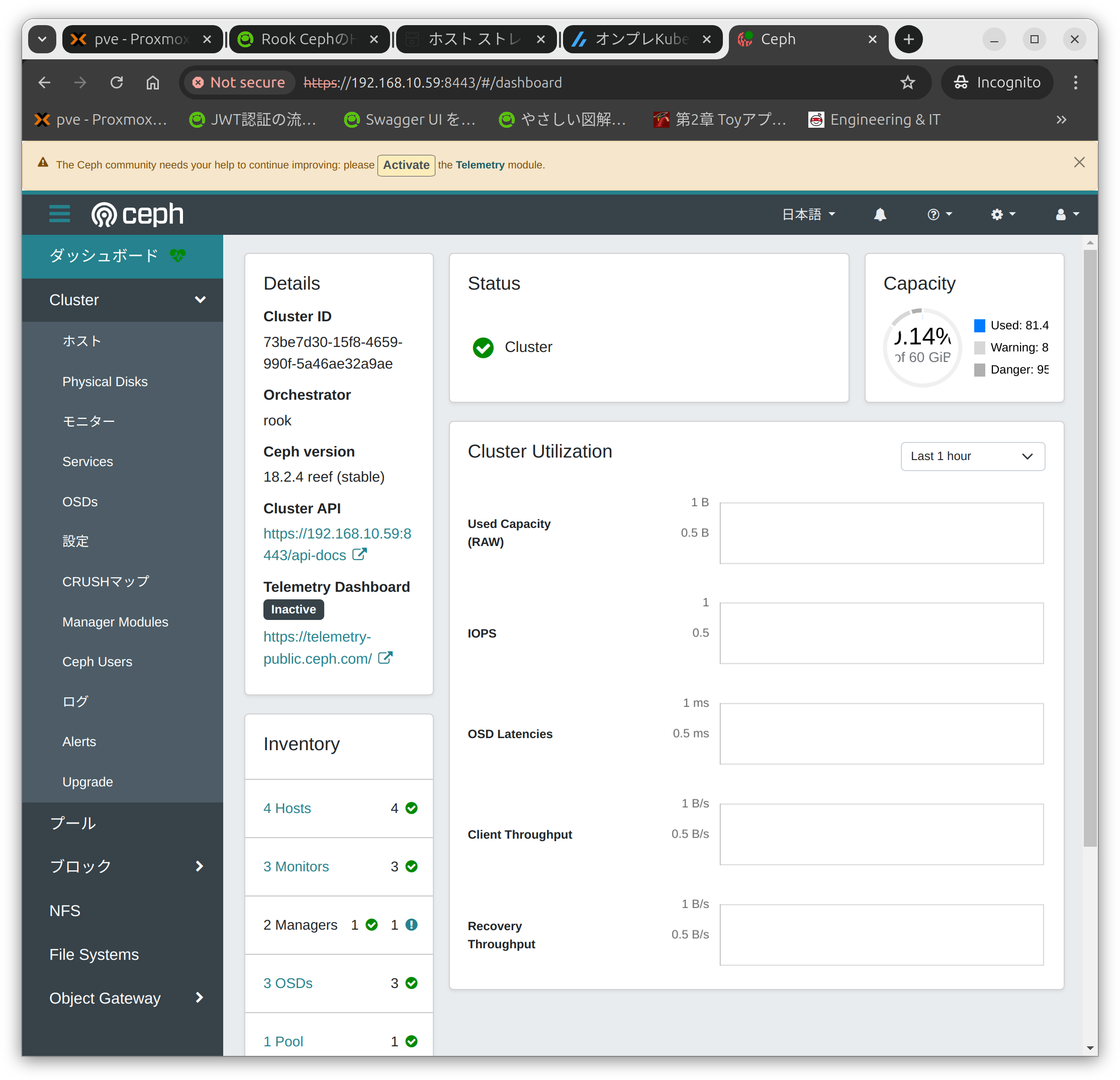

画面にアクセスして入力する
- admin
- Fd)q*/TcDC.x-YaM+t1X
